Slide Gates and Flap Valves

Slide Gates

Flap Valves

Why Choose Us: Engineering Precision, Reliable Materials, Long-Term Performance

In industrial systems where every component faces intense operational stress, material and design are not just choices — they are engineering decisions that directly impact performance, safety, and cost-efficiency.

Our Approach:

We don’t use “one-size-fits-all” solutions. Each slide gate or diverter valve is designed based on specific operating conditions: material abrasiveness, temperature, humidity, explosion risk, aggressive media, etc.

Engineering Materials Built for Longevity

Housing Components:

Structural Steel with RAL 7032 Powder Coating – the standard option for dry or neutral environments, offering high corrosion protection.

AISI 304 / 316 Stainless Steel – ideal for food, pharmaceutical, and chemical industries, where resistance to acids, alkalis, moisture, or steam is required.

Galvanized Components with Magnelis Coating – used for connecting elements, providing extended durability.

High-durability dynamic seals are used in select models. Seal materials are selected based on temperature, media, and industry-specific standards (including FDA).

Precision Engineering

All critical components are manufactured with strict adherence to high machining standards.

The design of valves and gates ensures tight contact between elements, minimizing leakage, vibration, and wear.

What You Get by Choosing Us:

Maximum wear resistance — long-term operation with minimal maintenance

Dust-proof design

Lining with special steels and plastics

Tailored material selection — based on your temperature, media, and abrasiveness requirements

Modular design — quick servicing or replacement of components

Certified solutions (ATEX, FDA) — for food-grade and hazardous environments

Full compliance with technical specifications — every product undergoes 100% quality control

Застосування у бомбосховищах та укриттях — окремі моделі газощільних клапанів призначені для систем вентиляції захисних споруд.

Doc Manuvrac_Pype systems

Price Table – 2 & 3 Direction Box

Price Table

*Prices are approximate and do not constitute a public offer.
Please check with our managers for the current price, delivery terms, and product availability.

		Price (€)

Implemented projects: Flap Valves

Discover more

Slide Gates

Таблица

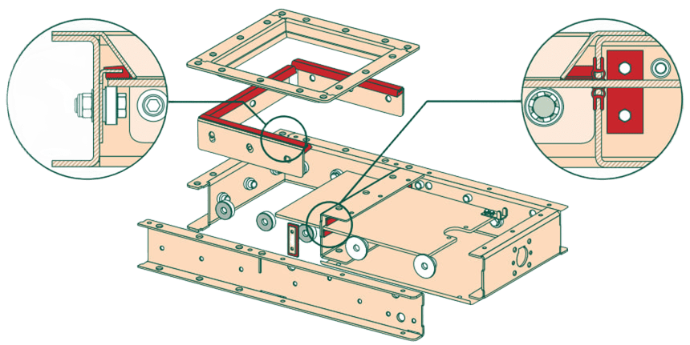

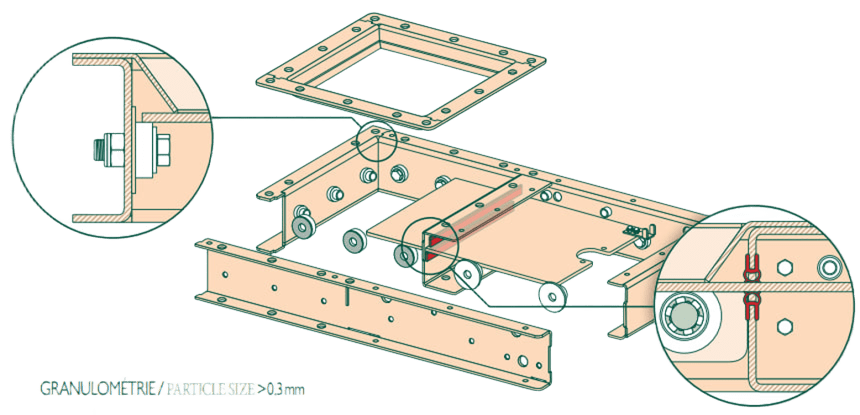

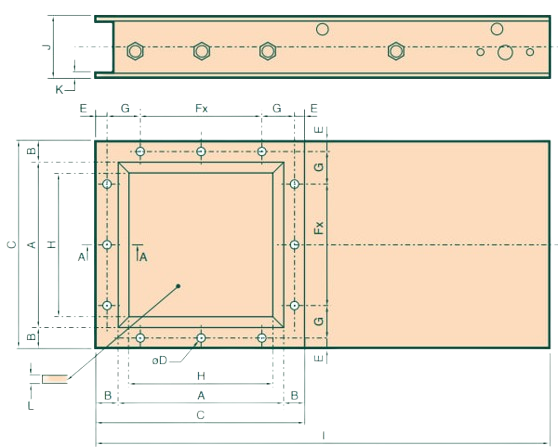

Guillotine hatches – Bare frame
◊ mm	A	B	C	ØD	E	Fx	G	H1*	H2*	I	J	K	L
150	150	33	216	9	15	95	45.5	150	116	490	98	3	4
200	200	33	266	9	15	140	48	196	162	590	98	3	4
250	250	316	2 x 95	48	246	212	690
300	300	45	390	11	20	2 x 110	65	296	262	805	114	4	6
350	350		440			2 x 140	60	346	312	905
400	400		490			2 x 160	65	396	362	1025
450	450		540			2 x 180	70	446	412	1125	124	5	8
500	500		590			3 x 140	65	496	462	1125	124	5	8

Таблица

Guillotine hatches – Motor-reducer control
◊ mm	M	N	O	P	R	S	T	U*	V*	X
150	80	150	155	70	54	128	250	144	Ø 50 x 200	310
200	80	150	205	70	54	128	250	144	Ø 50 x 200	310
250	255	3Ø 50 x 250	360
300	305	Ø 63 x 350	475
350	355	Ø 63 x 350	475
400	405	Ø 80 x 400	532
450	455	Ø 100 x 500	642
500	505	Ø 100 x 500	642

TGS: NBR/FDA 80°Cou/or Silicone 200°C

TGE: NBR/FDA 80°Cou/or Silicone 200°C

Screw Manual Control

Screw TR20 – Pitch 12, Length L
A — Handle control
B — Wheel control
C — Chain wheel

Rack Manual Control

M3 Rack outside of the dust flow
18 teeth sprocketМ
D — Handle control
E — Chain wheel
F — OPTION: Rack protector

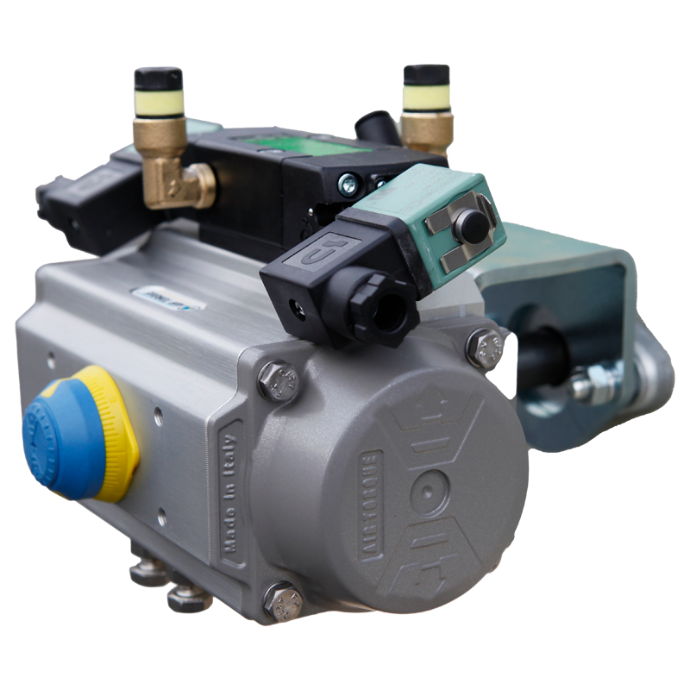

Pneumatic Drive

CYLINDER WITH:
Exhaust flow controllers
Solenoid valve 5/2 1 EV 48V AC
(Other voltage on request)
Tubing supply ø 6/8

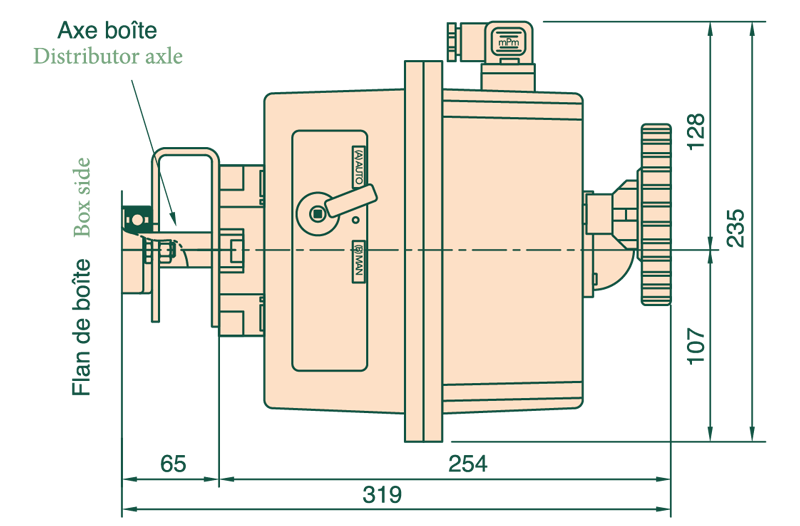

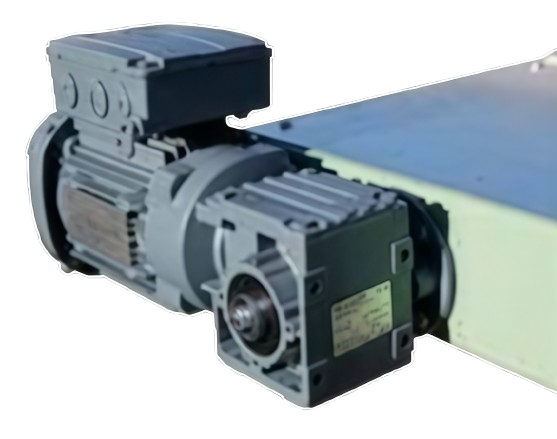

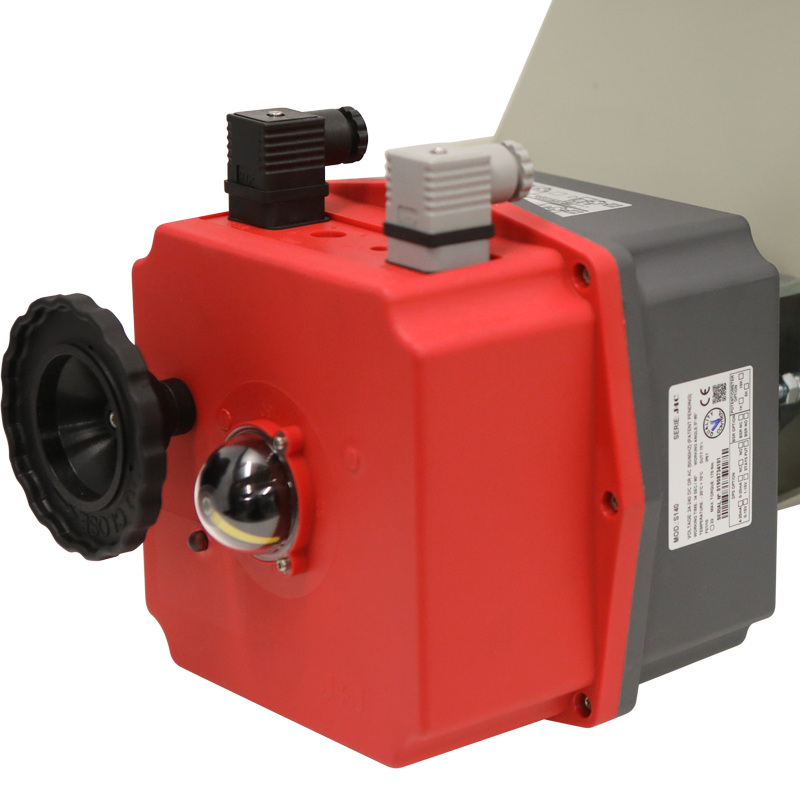

Electric Motor Control

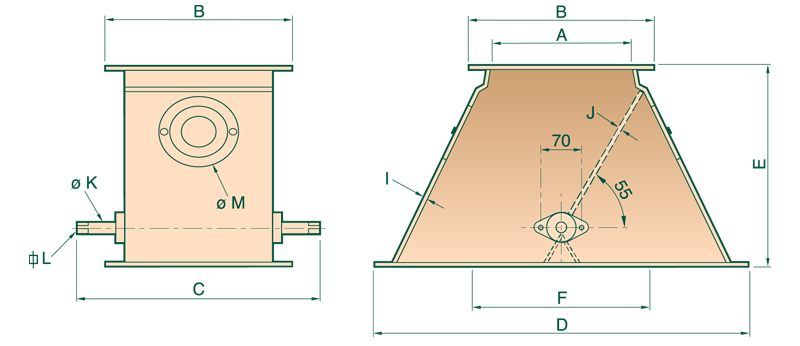

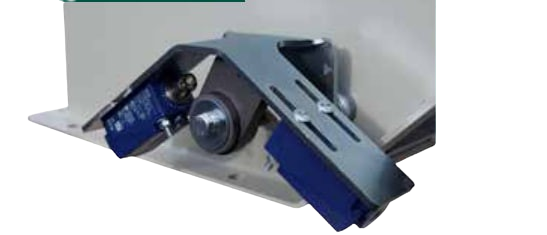

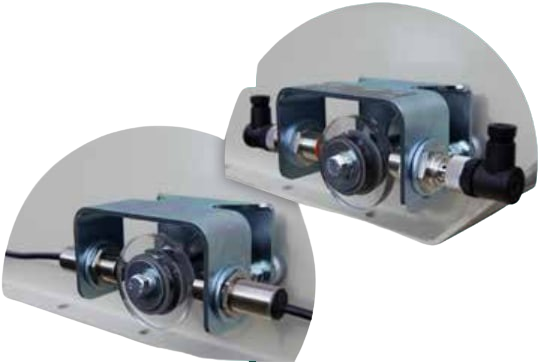

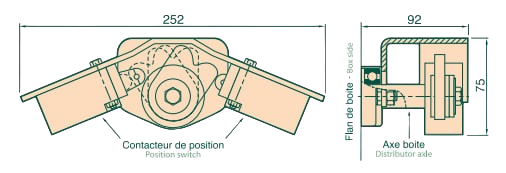

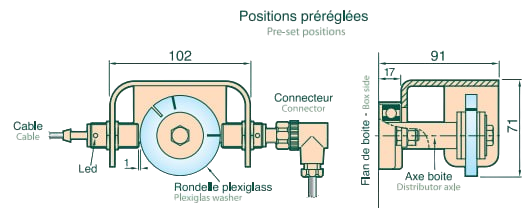

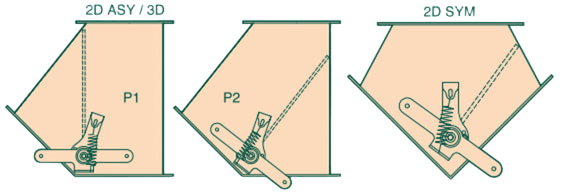

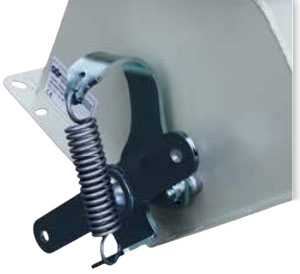

Flap Diverter - 45° Symmetrical 2 Way

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	306	207	153	131	3	8	20	17	100
200	200	266	362	376	291	188	197	3	8	20	17	100
250	250	316	412	448	337	224	225	4	8	20	17	100
300	300	390	462	552	403	276	265	4	8	20	17	100
350	350	440	512	622	457	316	302	5	8	20	17	150
400	400	490	600	694	499	347	326	5	8	30	22	150
450	450	540	650	764	547	382	356	5	8	30	22	150

Таблица

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	306	207	153	131	3	8	20	17	100
200	200	266	362	376	291	188	197	3	8	20	17	100
250	250	316	412	448	337	224	225	4	8	20	17	100
300	300	390	462	552	403	276	265	4	8	20	17	100
350	350	440	512	622	457	316	302	5	8	20	17	150
400	400	490	600	694	499	347	326	5	8	30	22	150
450	450	540	650	764	547	382	356	5	8	30	22	150

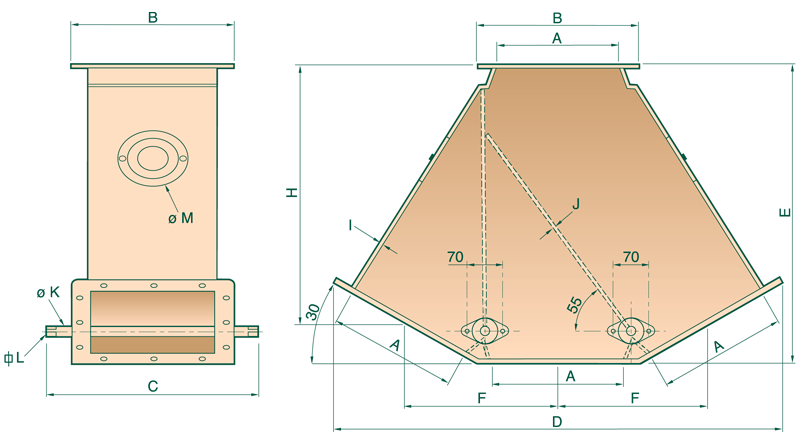

Flap Diverter - 60° Symmetrical 2 Way

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	374	240	187	186	3	8	20	17	100
200	200	266	362	461	291	231	225	3	8	20	17	100
250	250	316	412	548	337	274	258	4	8	20	17	100
300	300	390	462	676	403	338	306	4	8	20	17	100
350	350	440	512	762	457	381	347	5	8	20	17	150
400	400	490	600	849	499	425	377	5	8	30	22	150
450	450	540	650	936	547	468	412	5	8	30	22	150

Таблица

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	374	240	187	186	3	8	20	17	100
200	200	266	362	461	291	231	225	3	8	20	17	100
250	250	316	412	548	337	274	258	4	8	20	17	100
300	300	390	462	676	403	338	306	4	8	20	17	100
350	350	440	512	762	457	381	347	5	8	20	17	150
400	400	490	600	849	499	425	377	5	8	30	22	150
450	450	540	650	936	547	468	412	5	8	30	22	150

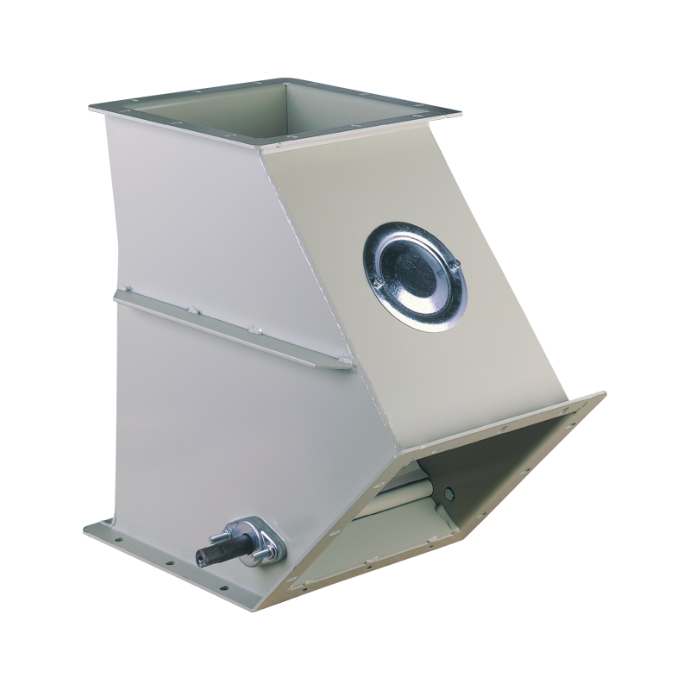

Flap Diverter - 45° A Symmetric 2 Way

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	369	325	185	249	3	8	20	17	100
200	200	266	362	459	400	227	306	3	8	20	17	100
250	250	316	412	540	500	270	389	4	8	20	17	100
300	300	390	462	666	550	33	413	4	8	20	17	100
350	350	440	512	650	650	376	495	5	8	20	17	150
400	400	490	600	750	750	419	577	5	8	30	22	150
450	450	540	650	820	820	461	630	5	8	30	22	150

Таблица

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	369	325	185	249	3	8	20	17	100
200	200	266	362	459	400	227	306	3	8	20	17	100
250	250	316	412	540	500	270	389	4	8	20	17	100
300	300	390	462	666	550	33	413	4	8	20	17	100
350	350	440	512	650	650	376	495	5	8	20	17	150
400	400	490	600	750	750	419	577	5	8	30	22	150
450	450	540	650	820	820	461	630	5	8	30	22	150

Flap Diverter - 60° A Symmetric 2 Way

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	403	375	202	326	3	8	20	17	100
200	200	266	362	497	500	249	434	3	8	20	17	100
250	250	316	412	590	580	295	501	4	8	20	17	100
300	300	390	462	728	700	364	603	4	8	20	17	100
350	350	440	512	821	790	411	680	5	8	20	17	150
400	400	490	600	915	860	458	738	5	8	30	22	150
450	450	540	650	1008	940	504	805	5	8	30	22	150

Таблица

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	403	375	202	326	3	8	20	17	100
200	200	266	362	497	500	249	434	3	8	20	17	100
250	250	316	412	590	580	295	501	4	8	20	17	100
300	300	390	462	728	700	364	603	4	8	20	17	100
350	350	440	512	821	790	411	680	5	8	20	17	150
400	400	490	600	915	860	458	738	5	8	30	22	150
450	450	540	650	1008	940	504	805	5	8	30	22	150

Flap Diverter - Flate 2 Way Diverter

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	432	207	216	326	3	8	20	17	100
200	200	266	362	532	291	266	434	3	8	20	17	100
250	250	316	412	632	337	316	501	4	8	20	17	100
300	300	390	462	780	403	390	603	4	8	20	17	100
350	350	440	512	880	457	440	680	5	8	20	17	150
400	400	490	600	980	499	490	738	5	8	30	22	150
450	450	540	650	1080	547	540	805	5	8	30	22	150

Таблица

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	432	207	216	326	3	8	20	17	100
200	200	266	362	532	291	266	434	3	8	20	17	100
250	250	316	412	632	337	316	501	4	8	20	17	100
300	300	390	462	780	403	390	603	4	8	20	17	100
350	350	440	512	880	457	440	680	5	8	20	17	150
400	400	490	600	980	499	490	738	5	8	30	22	150
450	450	540	650	1080	547	540	805	5	8	30	22	150

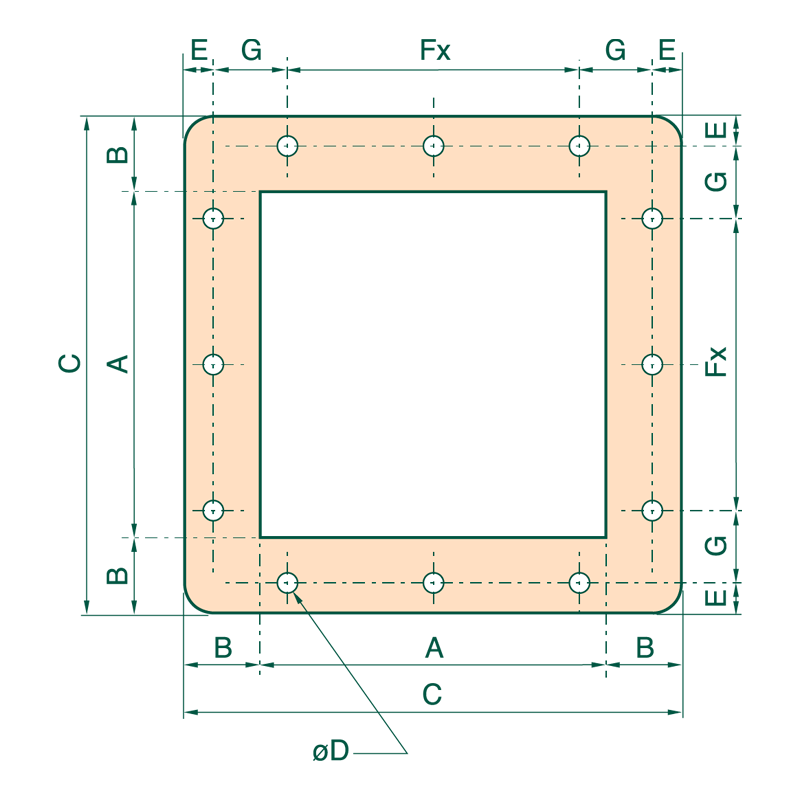

Flap Diverter - Frames

Таблица

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm
150	155	33	216	9	15	95	45.5
200	200	266	140	48
250	250	316	2 x 95	48
300	300	45	390	11	20	2 x 110	65
350	350		440			2 x 140	60
400	400		490			2 x 160	65
450	450		540			2 x 180	70

Flap Diverter - 45° Symmetrical 3 Ways Diverter

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	522	325	185	249	3	8	20	17	100
200	200	266	362	642	400	227	306	3	8	20	17	100
250	250	316	412	764	500	270	389	4	8	20	17	100
300	300	390	462	942	550	330	413	4	8	20	17	100
350	350	440	512	1062	650	376	495	5	8	20	17	150
400	400	490	600	1184	750	519	577	5	8	30	22	150
450	450	540	650	1304	820	461	630	5	8	30	22	150

Таблица

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	522	325	185	249	3	8	20	17	100
200	200	266	362	642	400	227	306	3	8	20	17	100
250	250	316	412	764	500	270	389	4	8	20	17	100
300	300	390	462	942	550	330	413	4	8	20	17	100
350	350	440	512	1062	650	376	495	5	8	20	17	150
400	400	490	600	1184	750	519	577	5	8	30	22	150
450	450	540	650	1304	820	461	630	5	8	30	22	150

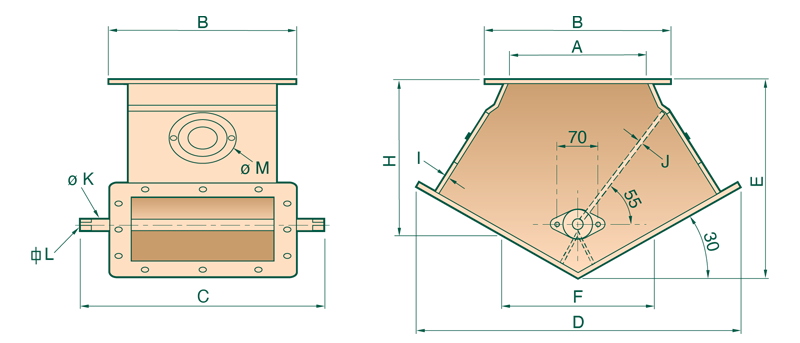

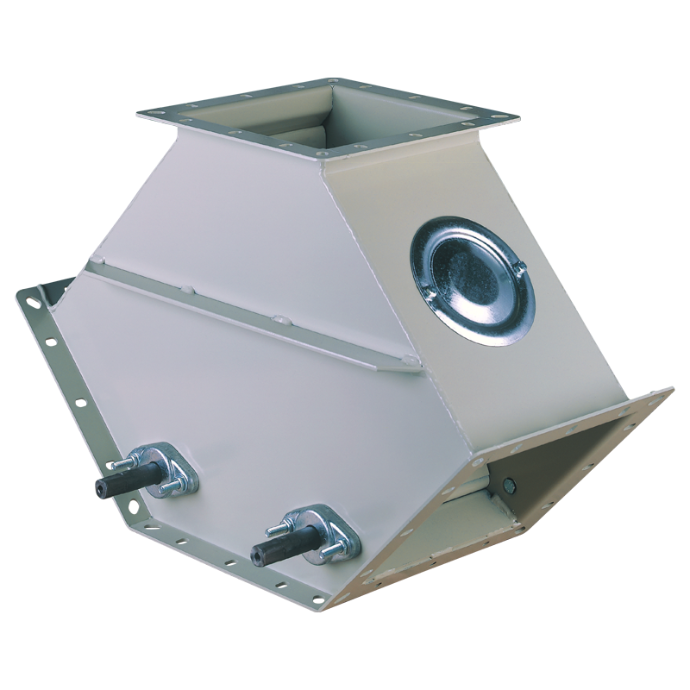

Flap Diverter - 60° Symmetrical 3 Ways Diverter

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	590	380	202	326	3	8	20	17	100
200	200	266	362	728	500	249	434	3	8	20	17	100
250	250	316	412	864	580	295	501	4	8	20	17	100
300	300	390	462	1066	700	364	603	4	8	20	17	100
350	350	440	512	1202	790	411	680	5	8	20	17	150
400	400	490	600	1340	860	458	738	5	8	30	22	150
450	450	540	650	1476	940	504	805	5	8	30	22	150

Таблица

◊ mm	A mm	B mm	C mm	D mm	E mm	F mm	H mm	I mm	J mm	K mm	L mm	M mm
150	155	216	312	590	380	202	326	3	8	20	17	100
200	200	266	362	728	500	249	434	3	8	20	17	100
250	250	316	412	864	580	295	501	4	8	20	17	100
300	300	390	462	1066	700	364	603	4	8	20	17	100
350	350	440	512	1202	790	411	680	5	8	20	17	150
400	400	490	600	1340	860	458	738	5	8	30	22	150
450	450	540	650	1476	940	504	805	5	8	30	22	150
